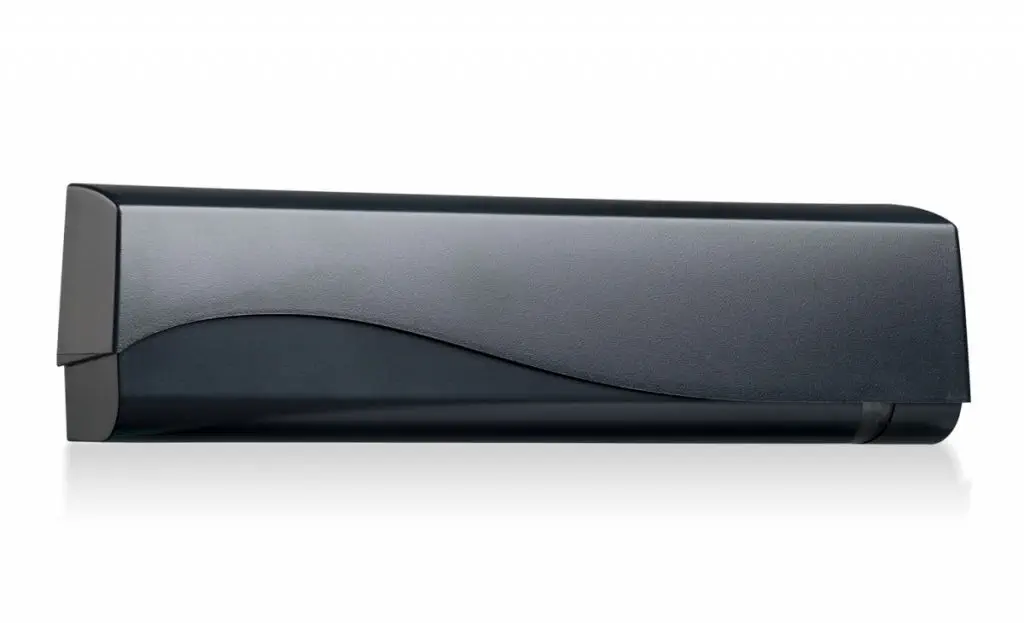

Rivelatore di presenza vio produttore BEA

Technology Microprocessed active infrared
Mounting Height Minimum 1? above floor
Distance between pairs of beams Minimum 1? (note: beams must be crossed)
Distance between heads and the plane of the doors 1?
Range of detection Minimum 3? – Maximum 15?
Alignment tolerance 8ø
Detection method Presence (by beam interruption)
Response time ? 40 ms
Hold time 300 ms
Power supply 12 – 24 V AC ñ 10% 12 – 24 V DC -5% / +30%
Consumption < 100 mA Output contact rating ? Max. contact voltage ? Max. contact current ? Max. switching power 1 Relay (NC/NO contacts) 50 V DC / 50 V AC 1 A (resistive) 30 W (DC) / 60 VA (AC) Displays 2 Red LEDs, lights when barrier is interrupted Adjustments Dip switches Operating temperature -30ø to +131ø F Immunity ? Ambient light ? Incandescent light ? Electromagnetic compatibility 75000 Lux 25000 Lux with an angle of 8ø in accordance with 89/336/EEC (CE) Protection Nema 4 Enclosure (IP 65) Dimensions ? Heads ? Control Board Body: <15/32? (L embed) x 15/32? ? Harness: ? 5/8? 3? (w) x 2? (d) x 1? (h) Cable length 18? (D)or 32?(L) (specify when ordering) Material ABS Housing color Transparent Cable color ? Emitter ? Receiver Gray (formerly yellow) Black (formerly green) Head color ? Emitter ? Receiver Gray and blue (formerly yellow and black) Black and blue (formerly green and black)
