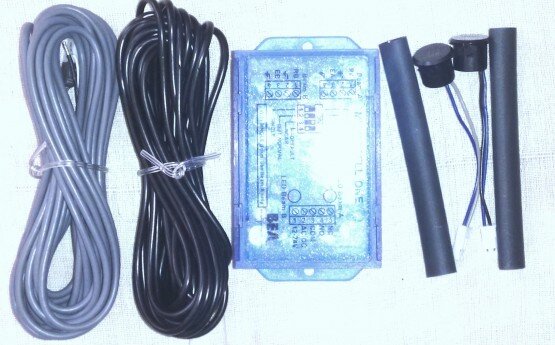

Fotocellula microcell one BEA
Technology Microprocessed active infrared
Mounting Height Minimum 1? above floor
Distance between pairs of beams Minimum 1? (note: beams must be crossed)
Distance between heads and the plane of the doors 1?
Range of detection Minimum 3? – Maximum 15?
Alignment tolerance 8ø
Detection method Presence (by beam interruption)
Response time ? 40 ms
Hold time 300 ms
Power supply 12 – 24 V AC ñ 10% 12 – 24 V DC -5% / +30%
Consumption < 100 mA
Output contact rating
? Max. contact voltage
? Max. contact current
? Max. switching power
1 Relay (NC/NO contacts)
50 V DC / 50 V AC
1 A (resistive)
30 W (DC) / 60 VA (AC)
Displays 2 Red LEDs, lights when barrier is interrupted
Adjustments Dip switches
Operating temperature -30ø to +131ø F
Immunity
? Ambient light
? Incandescent light
? Electromagnetic compatibility
75000 Lux
25000 Lux with an angle of 8ø
in accordance with 89/336/EEC (CE)
Protection Nema 4 Enclosure (IP 65)
Dimensions
? Heads
? Control Board
Body: <15/32? (L embed) x 15/32? ?
Harness: ? 5/8?
3? (w) x 2? (d) x 1? (h)
Cable length 18? (D)or 32?(L) (specify when ordering)
Material ABS
Housing color Transparent
Cable color
? Emitter
? Receiver
Gray (formerly yellow)
Black (formerly green)
Head color
? Emitter
? Receiver
Gray and blue (formerly yellow and black)
Black and blue (formerly green and black)
